Swing clamps, with upper flange (A), for low pressure range


Swing clamp,
for low pressure range,
with upper flange and
integrated overload protection


Risk of injury:
If the swing clamp cylinder is under pressure considerable risks of injury by pinching or crushing are constantly present within the swing area during operation. The safety instructions and the valid accident prevention regulations must be observed.


This hydraulic swing clamp cylinder operates as single-acting or double-acting pull cylinder, whereas part of the stroke is used to rotate the piston. The model with 0° swing angle operates only vertical as a pull cylinder. The swing clamp cylinders are equipped with a reinforced swing mechanism. To guarantee a long lifetime the cylinders have an integrated metal wiper as standard. For oil supply, the cylinders are equipped with threaded port and manifold connection with O-rings for drilled channels.

When ordering the swing clamp, the Zero position of the axis can be chosen in 30 ° steps positive or negatively up to 180 °. Right or left swinging models with 0° and 90° swing angle are available as standard. The special swing angles 30°, 45° and 60° are available on request. The allowed operating pressure is depending on the length of the clamping arm. Except from standard clamping arms also customer designed clamping arms can be assembled. The maximum operating pressure of 70 bar does not apply for each clamping arm length. For details about the allowed operating pressure, see datasheet 240-70.

The threaded port connection or
the manifold connection with O-ring
can be used application-specific.



Special features:
  • reinforced swing mechanism

  • compact design

  • long life of the seals

  • easy mounting of clamp arms

  • customer specific clamping arms can be mounted

  • standard and special clamping arms available

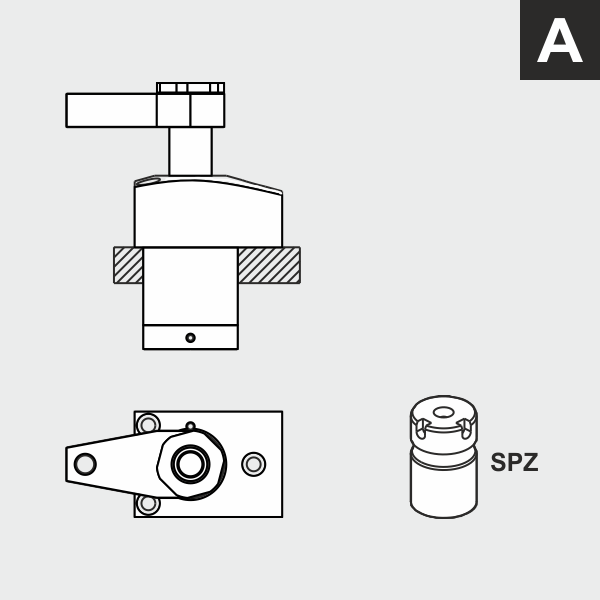

Type A, upper flange

The dimensioned installation contour can be found on data sheet 240-70.


Clamping arm holder:

Cylindrical holder

Clamping arm:

  • SPZ/j single
Here you will find an overview of all standard clamping arms.
Special clamping arms are available on request.
