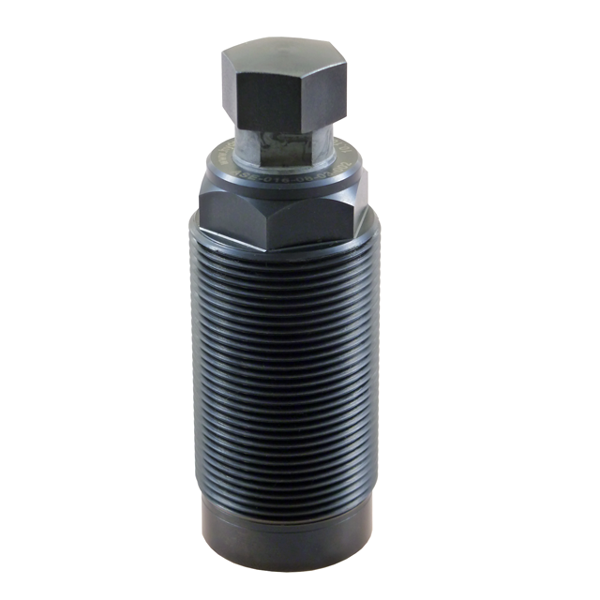

Work supports, with threaded body

When it is about increasing machining accuracy, the work supports are ideal components to avoid vibrations and deflection while machining workpieces. The threaded body variants allow horizontal as well as vertical mounting into the clamping fixture. With this flexibility, compact fixture designs can be realized also in space-critical conditions.

The hydraulic fixing of the plunger can be combined with the hydraulic clamping of the workpiece or separated. There are two work support methods to advance the plunger:

1. Advance via spring force:
basic plunger position extracted

2. Advance hydraulically:
basic plunger position retracted

• compact fixture designs possible

• horizontal and vertical mounting possible

• plunger fixing combined with clamping or separate possible

• with protecting metal wiper

• pressure oil supply via drilled channels

• standard work supports and special designs available

Operating pressure:

pmax. 500 bar



Advance method:

hydraulically or via spring force



Plunger:

Ø 16 mm, stroke 8 mm



Support force:

max. 12 kN at 500 bar



Spring force min.

 8 N (spring) 10 N (hydraulic)

Spring force max.

13 N (spring) 23 N (hydraulic)



Oil connection

drilled channels



Wiper:

soft wiper and metal wiper



Data sheet (PDF):



For technical details and dimensional drawings download our current data sheet 280-1 as a PDF.



Product configurator:

With our product configurator, you can put together your desired products step by step. Then the following options are available:



• generate an order number
• request a quote
• download 3D models
