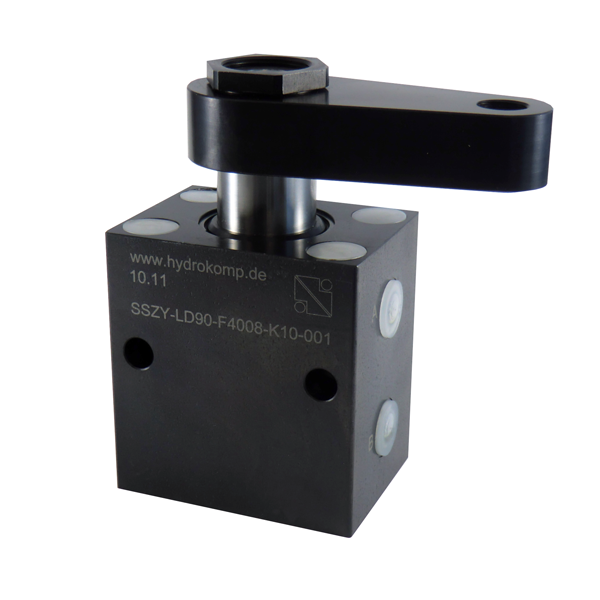

Swing clamps, with block housing (F)


Swing clamp cylinder,
with block housing,
integrated overload protection


Risk of injury:
If the swing clamp cylinder is under pressure considerable risks of injury by pinching or crushing are constantly present within the swing area during operation.
The safety instructions and the valid accident prevention regulations must be observed.


Swing clamp cylinders release the clamping point on the workpiece. With this, it is easy to change the workpiece. This hydraulic swing clamp cylinder operates as double-acting traction cylinder, whereas part of the stroke is used to rotate the piston. The model with 0° swing angle operates only vertical as traction cylinder. To guarantee a long lifetime the cylinders have an integrated metal wiper as standard.

For hydraulic oil supply, the cylinders are equipped with threaded port and manifold connection with O-ring for drilled channels. You can select between right or left turning models with various standardized swing angles. The integrated overload protection protects the swing mechanism from demage due blockage of the rotation or improper assembly of the clamping arm.

For any risk of exceeding the permitted volume flow a throttle check valve must be interposed into the oil supply line. Counter-hold the clamping arm when tightening or loosening the counter nut in order to prevent torque transfer to the piston rod and to avoid damage to the ball guide.

Models with 0°, 30°, 45°, 60° and 90° swing angles are available. The permitted operating pressure is depending from the clamping arm length. Models with other swing angles can be supplied as special designs. Except from standard clamping arms also special clamping arms can be assembled. The maximum operating pressure of 500 bar does not apply for each clamping arm length. For details about the permitted operating pressure see the diagrams on the data sheet.


Special features:
  • protecting metal wiper

  • integraded overload protection

  • oil supply via drilled channels or threaded ports

  • easy loading and unloading of the fixture

  • customer specific clamping arms can be mounted

  • standard and special clamping arms available

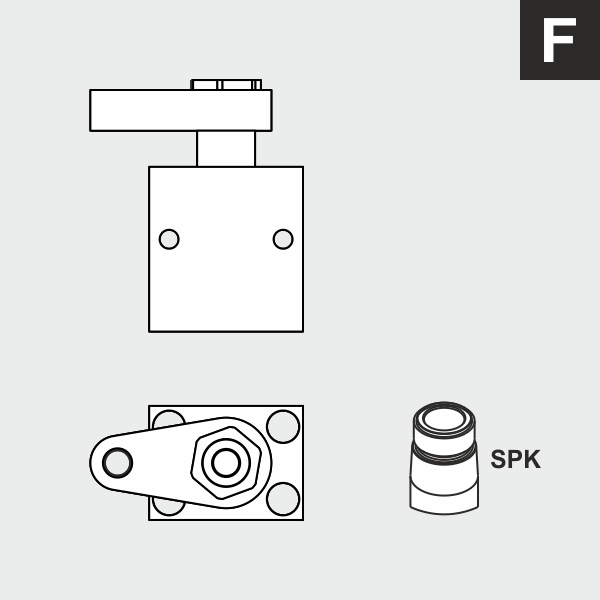

Type F, block housing

Mounting dimensions can be found on the data sheet.


Clamping arm holder:

Taper, ratio 1:10

Clamping arms:

  • SPK/c single clamping arm
  • SPK/d single clamping arm
  • SPK/e single clamping arm
  • SPK/f  double clamping arm
Here you will find an overview of all standard  clamping arms.
Special clamping arms are available on request.
